NanoTech UV-C Ozone NT-UV87-TO POOL VOLUME 90000 LITRES

Emaux NanoTech UV-C Ozone combines UV-C technology with ozone production ensuring fresh and healthy pool water with the minimum use of chlorine. Advantages

1. Built-in electronic pre-selector ensure a smooth power supply

2. Up to 35% more UV-C yield as a result of reflection

3. Reduces use of chlorine by up to 80%

4. Ozone UV-C lamp life 9,000 hours

5. Built-in timer for the UV-C lamp

6. Digital alert when the lamp needs replacing

7. Unit may need to work in conjunction with a small chlorinator salt or mineral

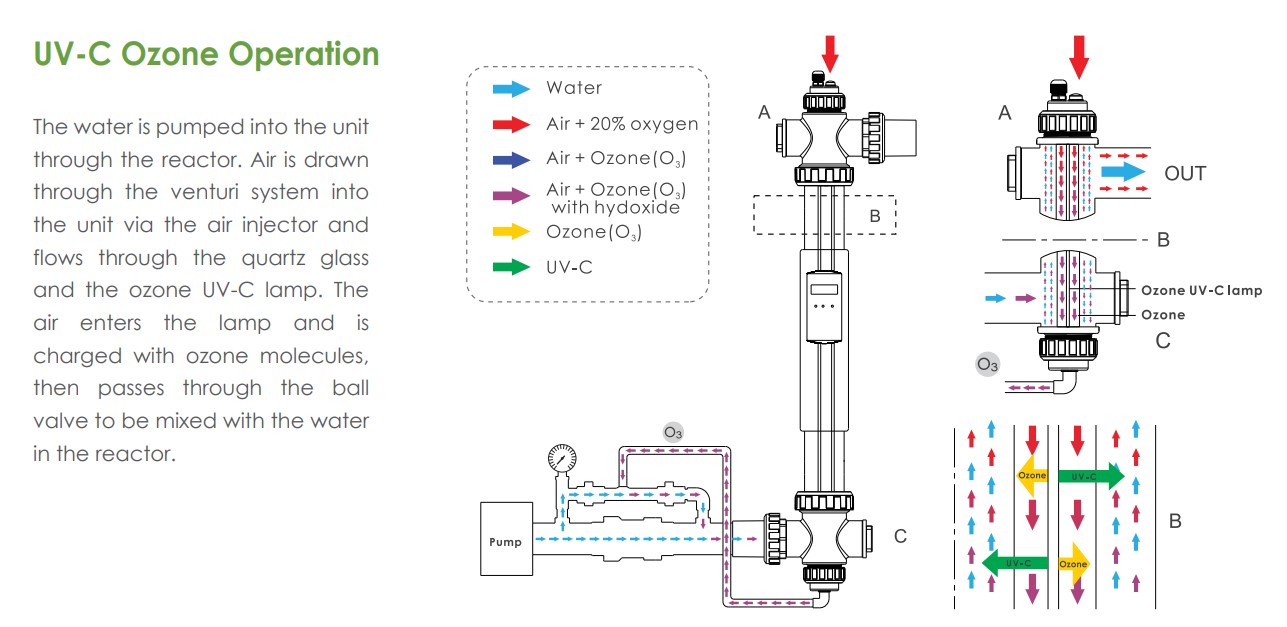

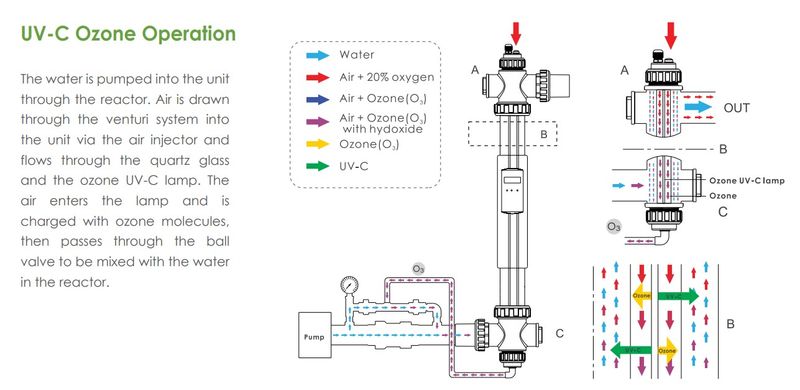

UV-C Ozone Operation The water is pumped into the unit through the reactor. Air is drawn through the venturi system into the unit via the air injector and flows through the quartz glass and the ozone UV-C lamp. The air enters the lamp and is charged with ozone molecules, then passes through the ball valve to be mixed with the water in the reactor.
